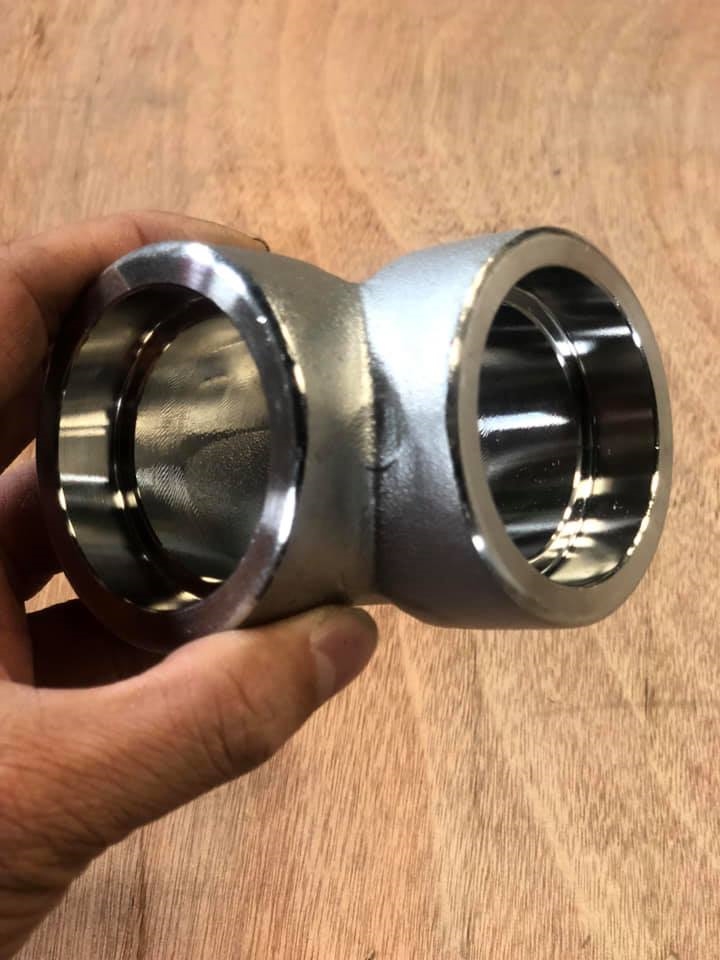

Steel Pipe Fitting Class 3000 90 Degree Elbow

Mô tả chi tiết

Product Name: Elbow

Material: A234-WPB, A420-WPL6, A234-WP12, A234-WP11, A234-WP5, A403-WP304, A403-WP304L, A403-WP316, A403-WP316L

Standards: ISO, SNSI, JIS, DIN, GB / T12459, GB / T13401, ASME B16.9, SH3408, SH3409, HG / T21635, HG / T21631SY, T05010

Specifications:
Size: 1/2 "-48"
Thickness: Sch5-Sch160
Angle: 15 degrees, 30 degrees, 45 degrees, 60 degrees, 90 degrees, 180 degrees
Bending radius: R = 1D, R = 1.5D, R = 2D, R = 3D, R = 5D

Surface treatment: oiling, spraying black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc

packaging: boxes, trays

Inspection: water pressure test, X-ray inspection, ultrasonic inspection Product Name: Tee & Stone Material: Q235, 20 #, 10 #, Q345, A234, WPB, WP5, WP9, WP11, ST37.0, ST35.8, ST37.2, ST35.4 / 8, ST42, ST45, ST52, ST52.4, STP G38, STP G42, STPT42, STB42, STS42, STPT49, STS49

Standard: ASME B16.9, JIS B2311, JIS B2312, JIS B2313, GB12459, GB / T 13401, SH3408, SH3409, HG / T21635, HG / T21631, SY / T0510

type: 1. Tee, Stone, Reducing three, four, medium and low voltage three, four, high-pressure three, four tee

2 carbon three, four, stainless steel tee, cross, alloy three, four tee

surface treatment: oiled sprayed black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc

packaging: wooden pallet

test: pressure test, X-ray inspection, ultrasonic inspection

Product Name: Reducer

material: Q235, 20 #, 10 #, Q345, A234, WPB, WP5, WP9, WP11, ST37.0, ST35.8, ST37.2, ST35.4 / 8, ST42, ST45, ST52, ST52.4, STP G38, STP G42 , STPT42, STB42, STS42, STPT49, STS49

Standard: ASTM A234, ASTM A420, ANSI B16.9 / B16.28 / B16.25, ASME B16.9, JIS B2311-1997 / 2312, JIS B2311 / B2312, DIN2605- 1/2617/2615, GB12459-99, EN Standard etc

Specifications: OD: 1/2 "-72"

Surface treatment: oiling, spraying black paint (or varnish), galvanized, 3PE, FBE epoxy anti-corrosion coating etc

packaging: boxes, trays

Inspection: water pressure test, X-ray inspection, ultrasonic inspection
